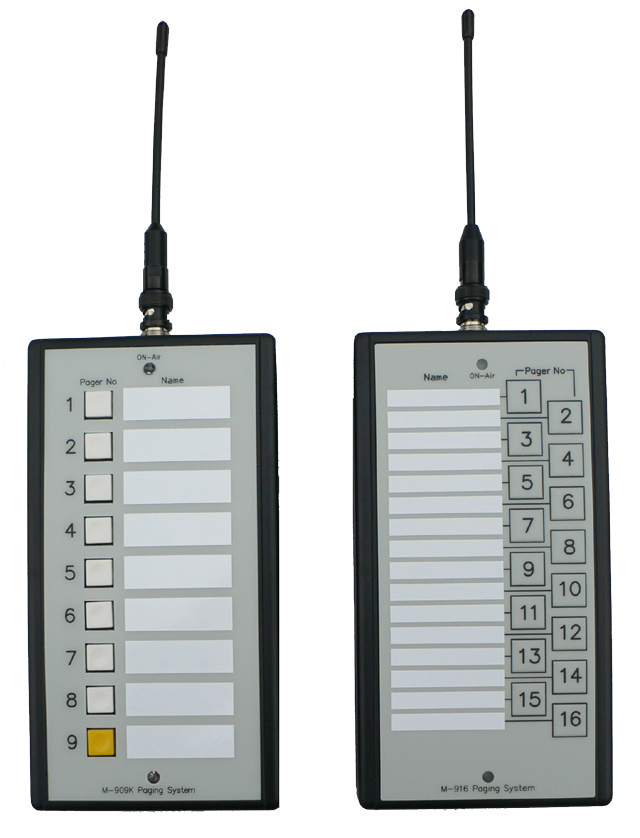

M-909X/M-916X Staff & Guests Paging system



Easy for calls by Pressing the Desired Button

The M-909X/916X on-site paging system is designed to directly page the staffs, and guests... with a simple button depressing. The system's individual call button feature can transmit  messages to a single or group pager users.

M-909X for 9 buttons, and M-916 for 16 buttons.

While the paging is activated, the red LED located at the top of the button will be lighted on to confirm the messages transmission is on the way.

Frequency by synthesized from 303MHz to 933MHz



It is easy to program and set up the desired pager frequency, capcode, data rate, repeat time etc. functions.





      ** Main Function **

  • Single call or group calling

  • Easy hanging on the wall

  • Quick paging

  • Direct calling to pagers

  • Simple operation

  • With Hi gain antenna

  • Long distance

  • Frequency synthesized 303-933MHz

  • CE and FCC approved

  • Option IoT gateway on internet

**  Specifications of M-909X / M-916X  **

Paging format: POCSAG
Frequency: 303-933MHz Frequency synthesized.
Baud rate 512/1200/2400 bps
Message: Alphanumeric (Max 40 Character).
RF output 10mW/100mW/500mW/1W/2W/4W... see order.
Modulation: FSK ,NRZ.
Deviation: 4.5K
Stability: ±10 ppm.
Pager Capacity M-909X for 9 Buttons. M-916X for 16 buttons.
Operating Voltage: DC 12V 1A. (option AC100V~240V DC adapter)
Programming: via USB with P/C.
Antenna BNC jack with GP whip antenna.
Case Size: 189mm X 102mm X 42mm.
Model Weight: 280 g.


Programming screen
