New solution !
Micro-x Alarm message Transmitter

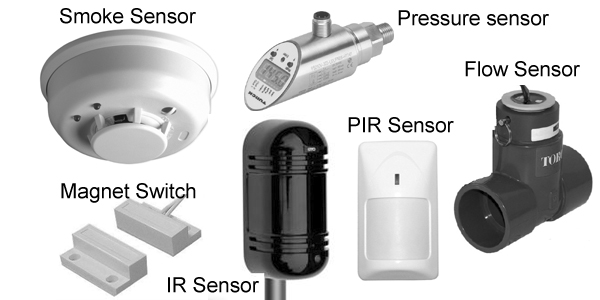

Module for Wireless alarm and security system, Industrial
monitoring and control system.
long long range and long long battery lift... Programmable
Frequency from 315-, 433-, 868-, 915-, 920-, 950-MHz,
The new design Micro-x is a
cost effective and high performance sub-1 GHz RF
transmitter, Which is integrated with a high
configurable baseband modulator. The device support
various FSK modulation formats and has a configurable
data rates from 0.5 to 2.4K bps. Inside of POCSAG
Copcode with message The new w-009, which is the high
reliability and low cost, high power output transmitter
in ISM band, is an ideal design module used for IoT
wireless data applications etc.
It is easy to program and set up
the desired pager frequency, capcode, data rate, repeat time etc.
